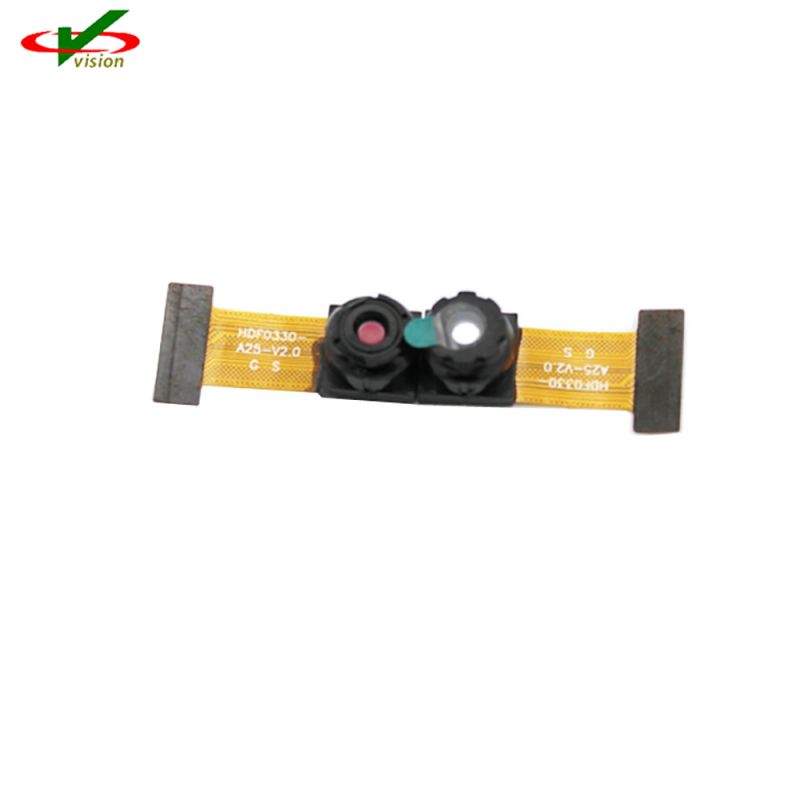

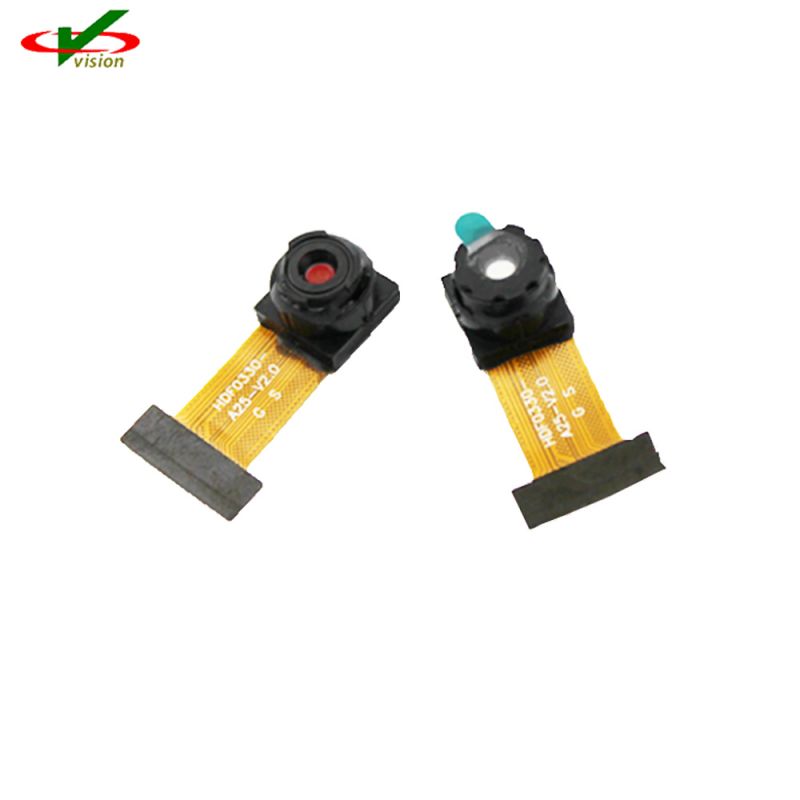

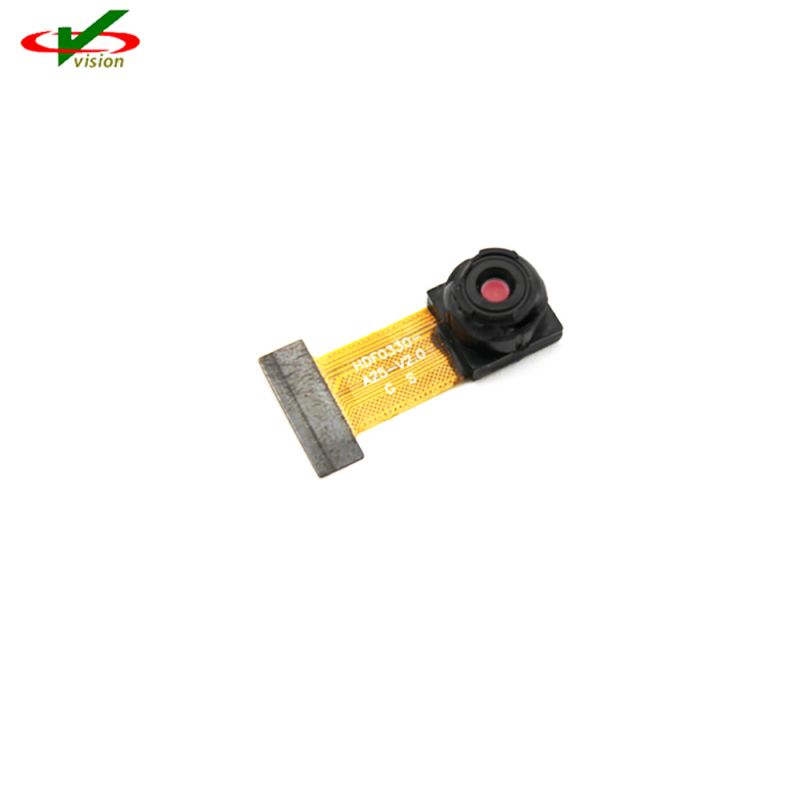

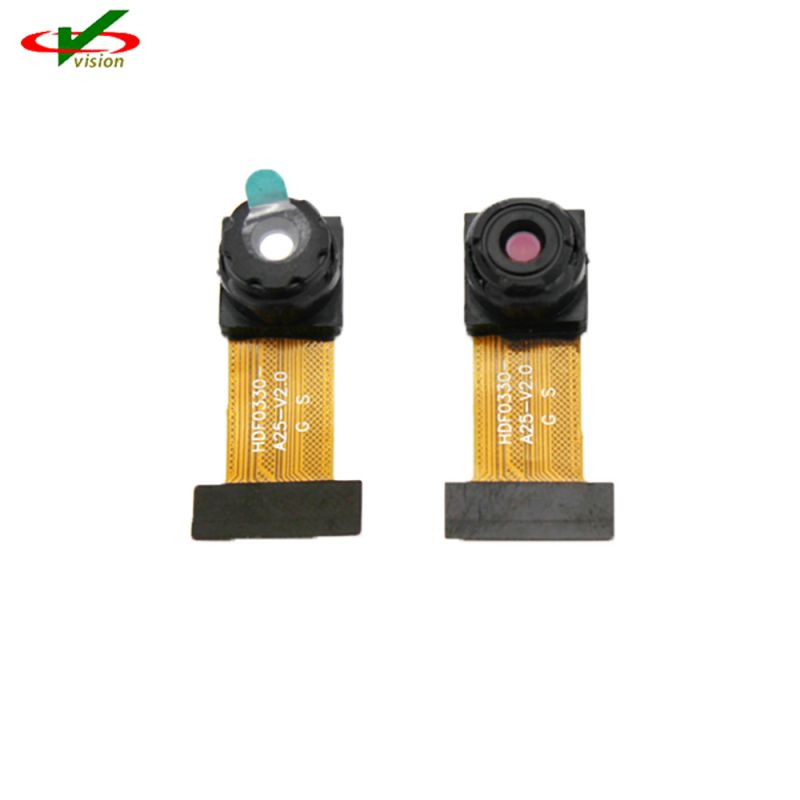

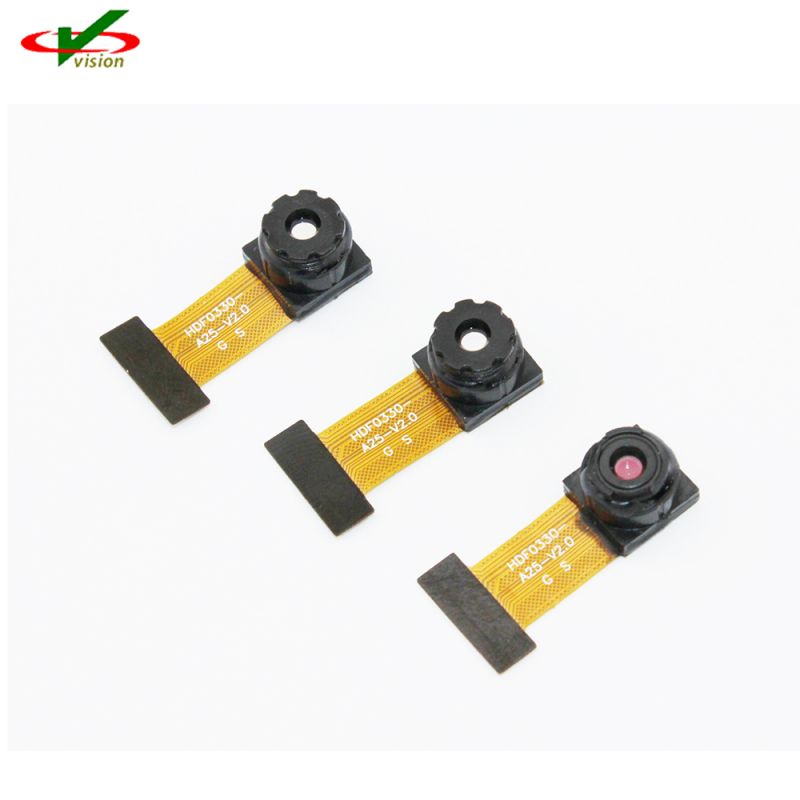

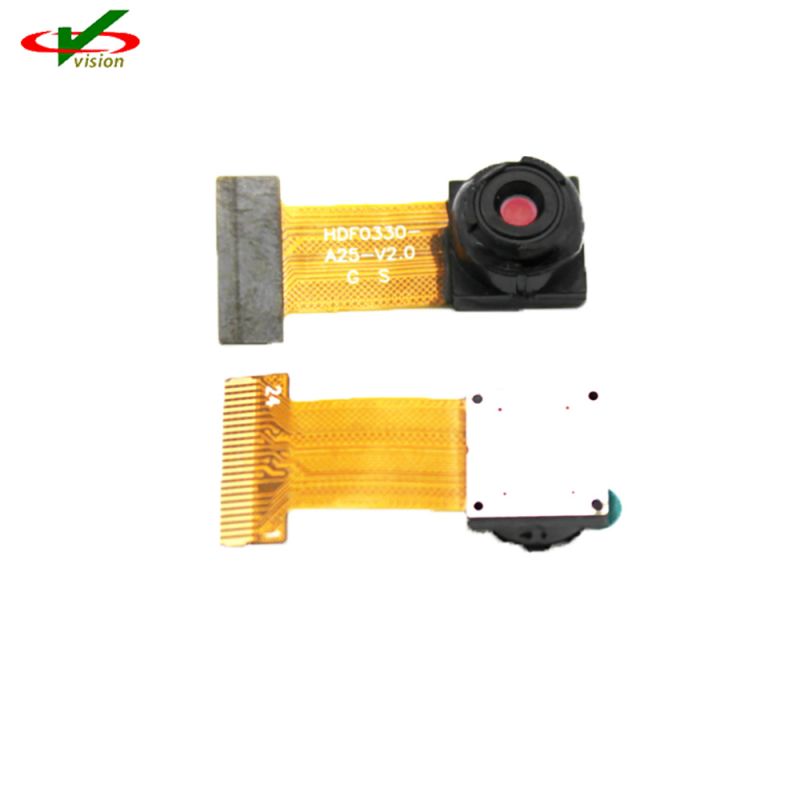

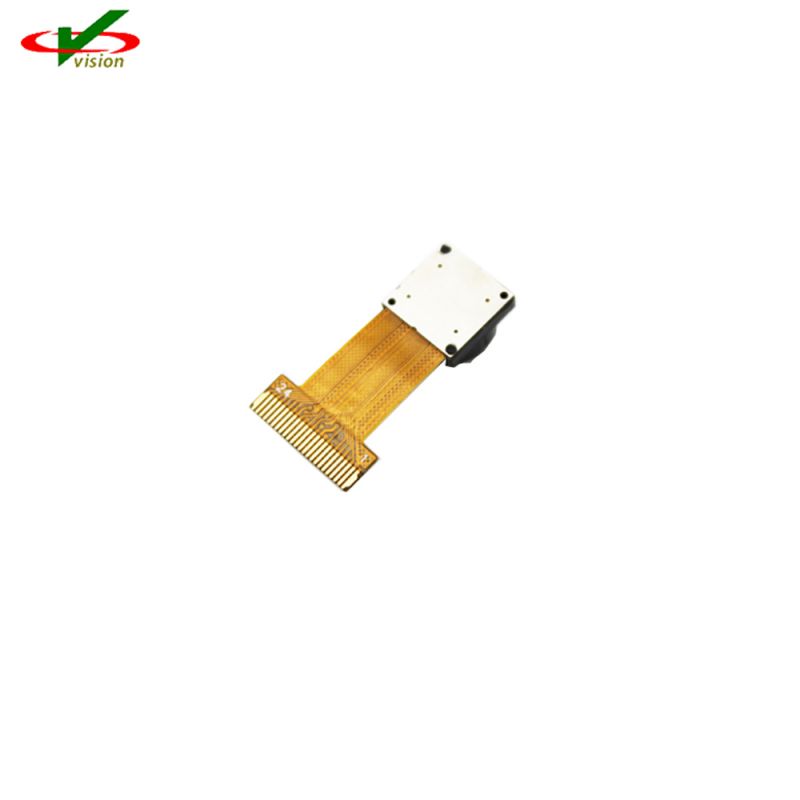

Modul Sensor 1080p Aptina AR0330 minangka sensor gambar digital CMOS 1/3 inci kanthi susunan piksel aktif 2304Hx1536V.
1080p Sensor Module AR0330 bisa ndhukung 3,15 megapiksel (2048H x 1536V) digital gambar foto lan 1080p30 + 20% EIS (2304H x 1296V) mode video digital.
Modul Sensor 1080p AR0330 nggabungake fungsi kamera on-chip canggih kayata mode windowing, mirroring, kolom lan baris subsampling, lan mode snapshot.
• Piksel 2,2µm kanthi teknologi Aptina™ A-Pix™
• kinerja cahya kurang Superior
• 3.4Mp (3:2) lan 3.15Mp (4:3)gambar foto
• Dhukungan kanggo rana mechanical external
• Dhukungan kanggo LED njaba utawa lampu kilat Xenon
• Antarmuka data: loro-lane serial MIPI utawa antarmuka podo
• On-chip phase-dikunci loop (PLL) osilator
• werna basis posisi Integrasi lan koreksi shading lensa
• antarmuka serial loro-kabel prasaja
• Kalibrasi tingkat ireng otomatis
• 12-kanggo-10 bit output A-Law komprèsi
• Mode budak kanggo kontrol pigura-tingkat sing tepat lan kanggo nyinkronake loro sensor
| Parameter Kunci | Nilai Khas | ||
| Format optik | 1/3-inch (6,0 mm) | ||
| Sakabèhé Array: 6.09mm | |||
| Gambar Diam: 5.63mm (4:3) | |||
| Gambar HD: 5,82mm (16:9) | |||
| Piksel aktif | 2304(H) x 1536(V): (kabeh array): | ||
| 5.07mm (H) x 3.38mm (V) | |||
| 2048(H) x 1536(V) (4:3, mode diam) | |||
| 2304(H) x 1296(V) (16:9, mode sHD) | |||
| Ukuran piksel | 2.2μm x 2.2μm | ||
| Susunan saringan warna | RGB Bayer | ||
| Jinis rana | ERS lan GRR | ||
| Rentang jam input | 6 – 27 MHz | ||
| Output jam maksimum | 98 Mp/s (paralel utawa 2-jalur MIPI) | ||
| Tanggung jawab | 2.0 V/lux-sec | ||
| Konsumsi Daya | 1080P30 MIPI Mode: 282mW. | ||
| 1080P30 Mode Paralel: 252mW | |||
| SNRMAX | 39 dB | ||
| Range dinamis | 69,5 dB | ||
| Tegangan suplai | I/O/Digital | 1.7–1.9V (1.8V nominal) utawa 2.4–3.1V (2.8V nominal) |
|
| digital | 1.7–1.9V (1.8 V nominal) | ||
| Analog | 2.7–2.9V | ||
| Suhu operasi (prapatan) -TJ |
-30 ° C nganti + 70 ° C | ||
| Pilihan paket | 6,28 mm x 6,65 mm CSP | ||
• 1080P30 dhuwur-definisi camcorder video digital
• Kamera web lan kamera konferensi video
• Keamanan
